Making samples one billion times bigger lets simple microscopes pinpoint amino acids

A technique that supersizes cells to reveal minute details has gone big — really big.

Using a polymer similar to those used in nappies to make them super-absorbent, scientists have expanded the volume of biological samples so they are one billion times bigger — 1,000-fold larger in each dimension. This level of expansion could inflate an individual cell to the size of a mouse brain and a US-dime-sized sample to the proportion of an Olympic swimming pool.

Researchers have used the technique to map the positions of amino acids (the building blocks of proteins) in proteins and small molecules called peptides using conventional light microscopes. The approach is outlined in a preprint posted on bioRxiv earlier this month¹.

Previously, viewing molecules in such fine detail has typically been achieved by using costly and complicated techniques such as cryogenic electron microscopy (cryo-EM) and X-ray crystallography. “This is the democratization of structural biology,” says study co-author Silvio Rizzoli, a neuroscientist and imaging specialist at the University Medical Center Göttingen (UMG) in Germany.

“It’s really getting down to a ground-truth description of what a protein is,” adds co-author Helena Hu, a bioengineer at the Massachusetts Institute of Technology (MIT) in Cambridge.

Expansion microscopy

The laws of physics limit the optical power of light microscopes: objects that are less than about 200 nanometres apart cannot be distinguished. ‘Super-resolution’ light-microscopy techniques, which usually rely on optical tricks and costly kit, have cut this resolution limit to below 10 nm.

In 2015, MIT neuroengineer Edward Boyden, a co-author of the study, and his colleagues invented an alternative way to get extremely high resolution using ordinary fluorescent light microscopes². Using a swelling hydrogel, the researchers expanded tissue samples about fourfold in each direction. This moved cellular components away from one another, improving resolution.

Researchers have since adapted Boyden’s ‘expansion microscopy’ method to swell samples to greater volumes, but inflation has generally been limited to about a 20-fold increase in size.

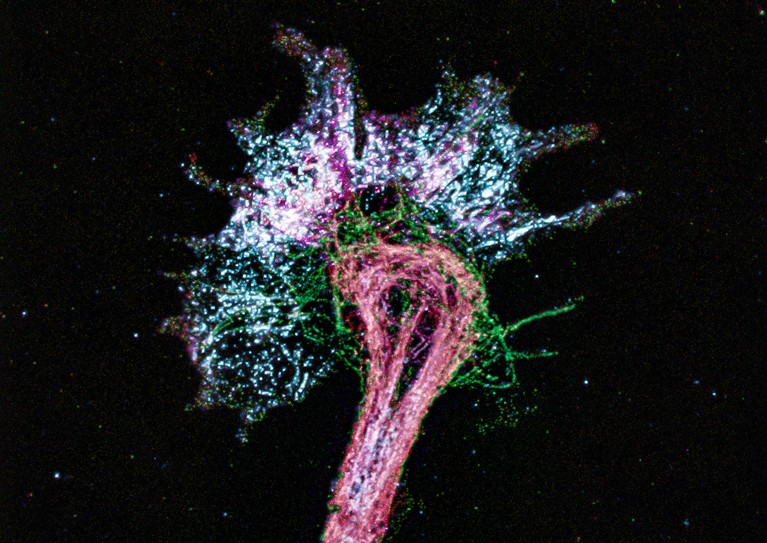

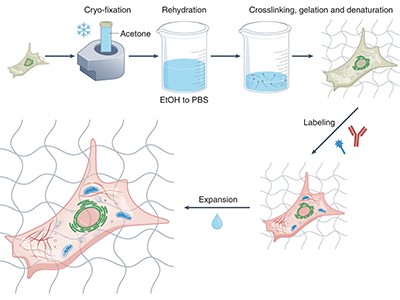

To go bigger, the researchers developed a new hydrogel recipe in which samples were expanded multiple times. The team also used an expansion-microscopy approach called ONE microscopy³ to map protein structures with a light microscope. Purified proteins were bonded to the hydrogel and then broken apart using enzymes or heat, enabling proteins to be stretched apart without compromising their 3D shape.

Gigantic proteins

Using their 1,000-fold expansion method, the researchers labelled several of the nine individual amino acids that make up a peptide called mCLING. They then imaged the relative locations of the building blocks using a fluorescent microscope. These measurements were consistent with structures of mCLING derived from computational simulations.

The method also revealed the structure of a protein called a nanobody (a small version of an antibody), as well as the locations of some of its amino acids. Furthermore, the researchers used the technique to map the previously determined structure of green fluorescent protein (GFP), a biotechnology workhorse used to label other proteins.

Expansion microscopy opens the door to exploring more challenges

The researchers estimate that their model of GFP — reconstructed from thousands of snapshots — attained a resolution of around 1.2 nm, or 12 ångströms. This is far from a 1.9-Å structure of GFP available in a public repository and determined using X-ray crystallography, or the level of detail that scientists routinely achieve using cryo-EM.

But co-author Ali Shaib, a nanoscale specialist at UMG, says that methodological improvements have driven resolution below 10 Å for purified proteins, in unpublished work. Rizzoli notes that the team is now able to determine the shapes of proteins that are still inside cells at around 10 Å. “We are trying to make cryo-EM like structures from affordable optical microscopes,” Shaib says.
