Social state alters vision using three circuit mechanisms in Drosophila

Fly stocks

All experiments used mated female flies unless otherwise stated. Flies were reared on standard cornmeal molasses food at 25 °C and 50% humidity. For optogenetic activation experiments, flies were reared in the dark on standard food supplemented with retinal (Sigma-Aldrich) unless otherwise specified, 0.2 mM all trans-retinal before eclosion and 0.4 mM all trans-retinal after eclosion. Hemidriver lines were created using gateway cloning as previously described⁶¹. Stable split GAL4 lines used in this study were constructed as described previously⁶¹ and hemidrivers used are described in Supplementary Table 1. iLexA stands for improved LexA, in which additional activating domains were added the transcription activator to enhance expression⁶². For the aIPg-iLexA line, the pBPnlsLexA::p65::GADUw vector was used for cloning as described previously⁴⁸). Original confocal image data of GAL4 lines are available at https://www.janelia.org/split-GAL4. Genotypes used in each figure are listed in Supplementary Tables 1, 3–5, 7, 9–11, 13, 15, 17, 18, 20–22, 24, 26–30, 32–34, 36 and 37.

Thermogenetic and optogenetic activation behavioural experiments

Groups of 5–8 group-housed mated female flies (7–10 days after eclosion) were video recorded at 60% relative humidity in a 53.3 mm × 3.5 mm circular arena. This assay and automated analysis pipeline was used as described⁶³. All non-thermogenetic (TrpA) experiments were performed at 24 °C, while thermogenetic experiments were performed at 22 °C for non-activating controls and 31 °C for activation experiments. All tests were conducted under visible light conditions at zeitgeber time 0 to zeitgeber time 4 unless otherwise stated. Flies were loaded into the arena using an aspirator. For activation of neurons expressing Chrimson, the arena was illuminated as specified in the figure legends using constant uniform illumination with 660 nm LEDs. For inactivation of neurons expressing GtACR, we used constant uniform illumination with 525 nm LEDs. All of the trials were performed under white-light illumination from above. Videos were recorded from above using a camera (USB 3.1 Blackfly S, Monochrome Camera; Point Grey) with an 800 nm long-pass filter (B+W filter; Schneider Optics) at 170 frames per second and 1,024 × 1,024 pixel resolution.

Behavioural classification and analysis

For each trial, flies were acclimatized to the arena for 30 s before the delivery of six sets of constant stimuli each lasting 30 s with 30 s in between each stimulus. For all experiments, only the lowest stimulus intensity in which an effect was found is depicted and was analysed. Unless otherwise stated, the pre-stimulus average was calculated from the three periods before the stimulus periods used for analysis. In Fig. 3f, the previous stimuli appeared to alter behaviour during successive stimulus-off periods; therefore, only the first 15 s of the first pre-stimulus period was used for comparison. The videos were processed using the automated pipeline described previously⁶³. In brief, flies were tracked using Caltech FlyTracker followed by automated classification of behaviour with JAABA classifiers⁶⁴. Novel classifiers for touch and aggression were created based on previous definitions^46,65. We validated the performance of these classifiers against manually labelled ground-truth data using videos that were not part of the training dataset (framewise performance is shown in Supplementary Table 2). As aggression is inherently the interaction of more than one fly, we cannot disassociate the behaviour of one fly from that of the others. Aggression is therefore computed on a per-arena basis rather than a per-fly basis. The percentage aggression is the sum of the aggression scores for all the trajectories in which flies were performing aggression divided by the total number of flies in the arena times 100. For figures displaying behavioural time courses, the mean of 0.35 s (60-frame) bins is shown. The angle occluded by nearest fly was calculated using the anglesub perframe feature⁶⁵ and was computed by finding the two lines tangent to the fit ellipse that intersect at the nose-point of this fly, and measuring the angle between them.

For dyadic courtship assays (n = 13), the courtship start frame was manually identified based on first-instance inter-fly distance of <3 mm and fixation angle of <|20°| lasting for >1 min. Courtship end was defined as first copulation frame or end of video acquisition (30 min).

For calculation of visual features experienced during aggressive and courtship interactions, the angular position, velocity, height and width were calculated on a frame-by-frame basis using a custom MATLAB (MathWorks) script whereby, for each frame, the coordinates and orientations of subject fly and nearest conspecific, or target fly, were translated and rotated such that the subject was situated at the origin facing zero degrees. In this new basis, the target fly’s angular position (θ) and velocity (φ) with respect to the subject fly’s visual field were calculated as \(\theta ={\tan }^{-1}\left(\frac{y}{x}\right)\) and \(\varphi =\frac{{\rm{d}}\theta }{{\rm{d}}t}\,\), respectively. To approximate the angular size and expansion of the target fly in the subject’s visual field, an ellipse was fit to the major and minor axes of the target fly in this new basis. The target fly’s angular width was approximated as the length of the cross-section of this ellipse that lies perpendicular to the Euclidean line between the anterior-most point of the subject fly and target fly centroid. Thus, for each frame, the equation for the target fly’s angular width, w, is \(w=2\left({\tan }^{-1}\frac{R}{d}\right)\), where R is half the real cross-sectional length of the ellipse (in mm) and d is the Euclidean distance (in mm) between the anterior-most point of the subject fly and target fly centroid. The target fly’s angular height was approximated in a similar manner; however the target fly’s real height was fixed at 1 mm (which a reasonable estimation of a female fly’s height), so the equation for angular height, h, was simply \(h=2\left({\tan }^{-1}\frac{0.5\,{\rm{mm}}}{d}\right)\), where d is the Euclidean distance (in mm) between the anterior-most point of the subject fly and target fly centroid. Female aggression frames were defined using the JAABA aggression classifier and calculated from 79 trajectories.

Fly preparation for calcium imaging

For Fig. 3a and Extended Data Fig. 2a–d, experiments were performed similarly to those described previously²⁴ with a similar preparation to that described in a previous study⁶⁶. Notably, the fly’s head was positioned and glued to the fly holder such that the eye’s equator faced the middle of the visual projection screen. The proboscis remained intact but was glued in position, and a dissection needle was used to remove the cuticle and sever muscle 16.

For Fig. 6c, experiments were performed similarly to as described previously¹¹. In brief, the flies were anaesthetized on CO₂ and tethered to a custom-milled plate. The flies were held in place by a string across the neck and fixed to the holder by both eyes and the back of the thorax using UV-curable glue. The proboscis was also glued to the mouthparts to minimize brain motion. Flies were left to recover in a warm, humidified chamber (25 °C, 50–70% humidity) in the dark for 1–4 h. The cuticle was subsequently dissected from the top of the head and flies were transferred to an air-supported foam ball.

Two-photon calcium imaging

In Fig. 3a and Extended Data Fig. 2a–d, calcium imaging experiments were performed with male or female flies (LC10a and LC9 experiments respectively) 5–10 days after eclosion, maintained under standard conditions (21.8 °C, 55% humidity, 16 h–8 h light–dark, standard cornmeal/molasses food). A full list of fly genotypes used in the calcium imaging experiments is provided in the Supplementary Information. The imaging setup is identical to the previously described two-photon microscope (Thorlabs) setup²⁴. In brief, we used a Ti:Sapphire femtosecond laser (Spectra-Physics Mai Tai eHP DS) tuned to 920 nm and delivering <20 mW power at the sample. Fluorescence signals were collected using a ×16 water-immersion objective (Nikon CFI75, NA 0.8) with a band-pass filter (Semrock 503/40 nm) in front of the photomultiplier tube (Hamamatsu GaAsP H10770PB-40 SEL). Oxygenated saline was circulated throughout. Imaging volumes were acquired at 5.6 Hz or higher. Visual stimuli were delivered to the fly’s right eye and all imaging was from the right side of the brain. The stimuli were presented on a screen that subtended approximately 90° by 90° of the fly’s field of view with a green (532 nm) projector setup as previously described²⁴.

In Fig. 6c, calcium imaging experiments were performed with TuTuA_1 and TuTuA_2 male flies 3–7 days after eclosion, maintained under standard conditions (25 °C, 65% humidity, 12 h–12 h light–dark, standard Würzburg food). The imaging preparation for tethered courtship was identical to that previously described¹¹. In brief, male flies rested and walked on a small 6.35 mm diameter ball, which was shaped from foam and manually painted with uneven black spots using a Sharpie. The foam ball was held by a custom-milled aluminium base and floated by air supplied at ~0.8 l min^−1 such that the ball could move smoothly. The ball was illuminated by infrared LED flood lights, and imaged with a Point Grey FLIR Firefly camera using a mirror. The ball was surrounded by a 270° conical screen with a large diameter of ~220 mm, a small diameter of ~40 mm and a height of ~60 mm. As males walked on the foam ball, all three rotational axes of the ball were read out by the FicTrac2.0 software⁶⁷ at 60 Hz in real-time. The visual stimulus was projected around the male from a DLP 3010 Light Control Evaluation Module (Texas Instruments) through a first-surface mirror below the fly. The red and green LEDs in the projector were turned off, leaving only the blue LEDs to minimize interference with GCaMP emissions.

Visual stimuli were generated in the MATLAB-based ViRMEn software⁶⁸ and projected onto the screen using custom perspective transformation functions. The net visual refresh rate of the visual stimulus ranged from 47.6 Hz to 58.9 Hz. Each trial was initiated by the presentation of a stationary visual target for 60 s to examine the animal’s baseline locomotion, after which the visual target began to oscillate. The visual target oscillated in a 107° arc around the animal with a constant angular velocity of approximately 75° s^−1, but the angular size of the dot was continuously altered to mimic the dynamics of a natural female during courtship. The angular size was altered by changing the distance between the male and the target in the ViRMEn world. The distance between the male and the target was taken from the inter-fly distance in a courting pair over the course of two minutes of courtship and, at each frame, the angular position of the target was scaled by this inter-fly distance to give rise to a more dynamic female path. Angular sizes ranged between around 8 and 50°, with the average size being 22.5°. Each stimulus frame was therefore unique for 2 min of time, and subsequently repeated until the end of the trial when it intersected its original position. Each trial lasted 10 min.

Male imaging experiments were performed using the Ultima Investigator or Ultima Investigator Plus two-photon laser-scanning microscope (Bruker Nanosystems) with a Chameleon Ultra II Ti:Sapphire laser. All of the samples were excited at a wavelength of 920 nm, and emitted fluorescence was detected with a GaAsP photodiode detector (Hamamatsu). All images were acquired using a ×40 Olympus water-immersion objective with 0.8 NA. All images were collected using PrairieView Software (v.5.5 or 5.7) at a resolution of 512 px × 512 px.

Courtship and running was classified based on the fidelity and vigour of a male’s pursuit of the visual target, as described previously¹¹.

In Extended Data Figs. 5b and 7a–e, ex vivo calcium imaging experiments were performed similarly to those described previously⁶⁹. In brief, flies were reared at 25 °C on cornmeal medium supplemented with retinal (0.2 mM) that was shielded from light. All experiments were performed on female flies, 3–5 days after eclosion. Brains were dissected in a saline bath (103 mM NaCl, 3 mM KCl, 2 mM CaCl₂, 4 mM MgCl₂, 26 mM NaHCO₃, 1 mM NaH₂PO₄, 8 mM trehalose, 10 mM glucose, 5 mM TES, bubbled with 95% O₂/5% CO₂). After dissection, the brain was positioned anterior side up on a coverslip in a Sylgard dish submerged in 2 ml saline at 20 °C. The sample was imaged with a resonant scanning 2-photon microscope with near-infrared excitation (920 nm, Spectra-Physics, INSIGHT DS DUAL) and a ×25 objective (Nikon MRD77225 25XW). The microscope was controlled using ScanImage 2017 (Vidrio Technologies). Volumes were acquired with a 230 μm × 230 μm field of view at 512 × 512 px resolution at 2  μm steps over 42 slices, at approximately 1 Hz. The excitation power for Ca²⁺ imaging measurement was 15 mW. On the emission side, the primary dichroic was Di02-R635 (Semrock), the detection arm dichroic was 565DCXR (Chroma), and the emission filters were FF03-525/50 and FF01-625/90 (Semrock). During photostimulation, the light-gated ion channel Chrimson was activated with a 660 nm LED (M660L3 Thorlabs) coupled to a digital micromirror device (Texas Instruments DLPC300 Light Crafter) and combined with the imaging path with a FF757-DiO1 dichroic (Semrock). Photostimulation occurred at 10 Hz over two periods with a duration of 14 s at 0.037 mW mm^−2 intensity interspersed by a 2 s pause. After responses to the photostimulation, the laser power was increased to take two-colour high-resolution images containing fluorescence from both the red and green channels. Using custom Python scripts, regions of interest (ROIs) corresponding to cell compartments were identified in the high-resolution images. These ROIs were then applied to the time-series images to measure intensity changes in response to the photostimulation. Fluorescence in a background ROI, which contained no endogenous fluorescence, was subtracted from the cell compartment ROIs. In the ΔF/F calculations, baseline fluorescence is the mean fluorescence over a 10 s time period before stimulation started. The ΔF is the fluorescence minus the baseline. The ΔF is then divided by the baseline to normalize the signal (ΔF/F). Outlier samples with very low intensities or those of which the intensity randomly fluctuated were excluded from the analysis.

Electrophysiology

Whole-cell patch-clamp recordings were obtained from freshly isolated brains of 3–5 day old flies. The brain was continuously perfused with oxygenated (95% O₂/5% CO₂) extracellular saline containing 103 mM NaCl, 3 mM KCl, 1.5 mM CaCl₂·2H₂O, 4 mM MgCl₂·6H₂O, 1 mM NaH₂PO₄·H₂O, 26 mM NaHCO₃, 5 mM TES, 10 mM glucose and 10 mM trehalose·2H₂O. Osmolarity was 275 mOsm and the pH was 7.3. Recording electrodes were pulled from thick-walled glass pipette (1.5 mm/0.86 mm) using the P-97 puller (Sutter Instruments) and fire polished using MF 830 (Narishige) to achieve resistances of 10–12 MΩ. Intracellular saline contained 137 mM KAsp, 10 mM HEPES, 1.1 mM EGTA, 0.1 mM CaCl₂·2H₂O, 4 mM MgATP, 0.5 mM NaGTP. Osmolarity was 260–265 mOsm and the pH was adjusted to 7.3 with KOH. Biocytin was added to intracellular solution at 0.5% for post hoc morphological confirmation.

The brain was visualized by an IR-sensitive CCD camera (ThorLabs 1501M) with an 850 nm LED (ThorLabs M850F2). GFP-labelled cell body was visualized with 460 nm LED (Sutter Instruments). Images were acquired using Micro-Manager with automatic contrast adjustment. Recordings were obtained from cell bodies under a 60× water-immersion objective (Olympus).

Current-clamp recordings were sampled at 20 kHz, low-pass filtered at 10 kHz using the Digidata 1550B system, Multiclamp 700B system and Clampex v.11.2 software (Molecular Devices). Recordings were made at a membrane potential of −50 mV to −65 mV, with small (5–30 pA) hyperpolarizing current injections as needed, and not corrected for liquid junction potentials.

Chrimson was activated by 630 nm LED at 0.4 mW cm^−2. The stimulation duration was set at minimal value that is sufficient to induce reliable responses from target neurons. After the electrophysiology recording, the whole brain was fixed in 4% paraformaldehyde in 0.1 M PBS until further staining. After rinsing in PBS, the brain was incubated in Streptavidin Alexa Fluor 647 (1:200) in PBS-T overnight at room temperature. The preparations were then rinsed, dehydrated and mounted with DPX. The confocal images were captured on the LSM 980 microscope (Zeiss), with 639 nm excitation wavelength.

The electrophysiological recordings were analysed using pClamp (Clampfit v.11.3). The instantaneous action potential frequency was calculated for about 1 min in each cell. The action potential amplitude was averaged from 20–30 individual events in each cell, and measured as the difference between the threshold and peak.

Immunohistochemistry and imaging

All experiments were performed as described previously^{46,70,71,72,73,74}. Additional details of the imaging pipeline used are available online (https://data.janelia.org/pipeline).

Connectomics analyses

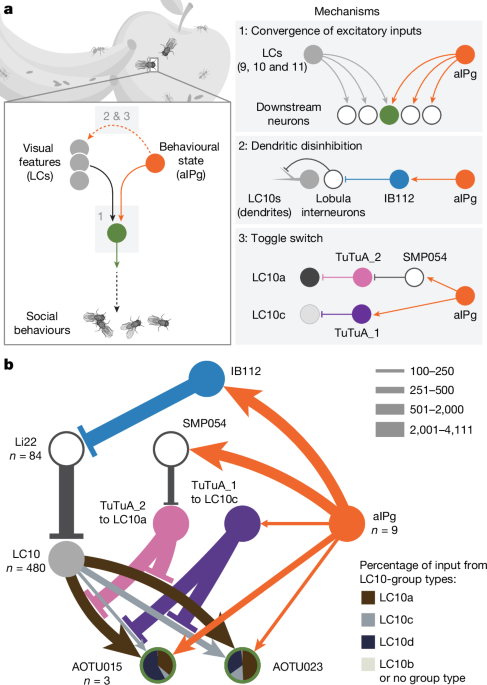

Our analyses are based on the hemibrain dataset²⁵ (v.1.2.1) as queried using the neuPrint interface (https://neuprint.janelia.org/) unless otherwise noted. The unique identifier (bodyID number in the hemibrain v.1.2.1 database) for neurons is shown in the figures, and a complete list of synaptic connections used to construct our circuit diagrams can be found in neuPrint. LC10s in the hemibrain dataset were assigned to candidate types based on connectivity and morphology differences. As the hemibrain did not include the entire lobula, we also performed analyses in the recently completed and fully annotated male optic lobe connectome⁵³ (neuprint release: optic-lobe: v.1.0) and the Flywire⁵⁴ (v.783) analysis of the FAFB datasets⁷⁵.

Synaptic connections organized by neuron pair and neuropil for FlyWire or optic lobe were obtained from Zenodo⁷⁶ and neuPrint (using neuprint-python fetch_adjacencies with the default settings), respectively. The connection tables obtained in this way do not include synapses with small, untyped EM bodies as, in most cases, unidentified fragments of larger reconstructed cells are included in the tables and we did not include such synapses when calculating relative connection strengths. Including these additional synapses in calculations of relative connections strength (as done for example in the neuPrint web interface) results in lower numbers that most likely underestimate the relative contribution of one cell type to the inputs or outputs of another type. Although we did observe highly similar relative connection strengths for many cell type pairs, we also note that there were methodological differences between the FlyWire/FAFB and optic lobe datasets that may result in significant non-biological differences between synapse counts.

Neurotransmitters for TuTuA_1 and IB112 were determined by EASI-FISH⁷⁷ using lines SS77547 for TuTuA_1 and SS81529 for IB112. Neurotransmitters for aIPg⁴⁶ and LC10s⁷⁸ were previously reported. Other reported neurotransmitters are based on computational predictions^53,79.

Cell type annotations for FlyWire neurons^59,60 were as downloaded from Codex on 24 April 2024 from https://codex.flywire.ai/api/download?data_product=visual_neuron_types&data_version=783. Matches of cell type names between the optic lobe and FlyWire datasets were as published⁵³. FlyWire data to evaluate connections to descending interneurons described in Extended Data Fig. 10 were accessed through Codex (https://codex.flywire.ai) and evaluated using Flywire.

Statistics

No statistical methods were used to predetermine sample size. Sample size was based on previous literature in the field and is provided in the Supplementary Information (Supplementary Tables 6, 8, 12, 14, 16, 19, 23, 25, 31 and 35). Experimenters were not blinded in most conditions as all data acquisition and analysis were automated. Experiments were not randomized as most controls were performed within animals. Biological replicates completed at separate times using different parental crosses were performed for each of the behavioural experiments. Behavioural data are representative of at least two independent biological repeats. For figures in which the behavioural data over the course of a trial are shown, a yellow or red bar indicates the stimulus period, the mean is represented as a solid line and shaded error bars represent the variation between experiments.

For each experiment, the experimental and control flies were collected, treated and tested at the same time. A Wilcoxon matched-pairs signed-rank test (two-tailed) was used for statistical analysis of optogenetic experiments when examining effects within the same group. The results of two-way analysis of variance followed by Tukey’s test (three or more groups) or uncorrected Fisher’s least significant difference test (two groups) for multiple comparisons for each optogenetic experiment are also reported in the Supplementary Information. For analysis among two groups, Mann–Whitney U-tests (two-tailed) were used, while Kruskal–Wallis tests with Dunn’s multiple-comparisons post hoc analysis were used to compare across multiple groups. All statistical analysis was performed using Prism (GraphPad, v.10). P values are indicated by asterisks. The exact P values for each figure are provided in the Supplementary Information.

For bar plots, all datapoints are shown to indicate the range and the top edge of the bar represents the mean. The box plots show the median and interquartile range. The lower and upper whiskers represent 1.5 ×  interquartile range of the lower and upper quartiles, respectively; the boxes indicate lower quartile, median and upper quartile, from bottom to top. When all points are shown, the whiskers represent the range and the boxes indicate the lower quartile, median and upper quartile, from bottom to top. In the violin plots, the lower and upper quartiles are indicated by dotted light grey lines, and the median is indicated by a solid light grey line. Shaded error bars on graphs represent the mean ± s.e.m.

Reporting summary

Further information on research design is available in the Nature Portfolio Reporting Summary linked to this article.
