An 11-qubit atom processor in silicon

The predominant material in modern classical computers, silicon, is also a strong contender for the practical implementation of quantum processors^3,6,7,8. To unlock the promised computational benefits of quantum computing, the qubit count needs to scale while maintaining high operation fidelity and connectivity. In terms of qubit numbers, the lead is at present held by superconducting^9,10, ion-trap¹¹ and neutral-atom¹² processors, which approach hundreds of interconnected qubits. Further scale-up faces platform-specific challenges related to manufacturing, control-systems miniaturization and materials engineering. In this context, silicon quantum processors are emerging as a promising platform owing to their small footprint and materials compatibility with industrial manufacturing^8,13,14.

In semiconductor devices, the number of individual qubits is increasing, with gate-defined arrays hosting up to 16 quantum dots^14,15. So far, however, no more than four interconnected spin qubits were used in the execution of quantum circuits owing to challenges associated with multi-qubit control^16,17,18,19. In this context, quantum computing with precision-placed phosphorus atoms in silicon, which we refer to as the 14|15 platform (according to the respective positions in the periodic table), is attracting growing interest driven by industry-leading physical-level metrics³ with exceptional, second-long coherence times^2,20. The 14|15 platform uses precision manufacturing²¹ to place individual phosphorus atoms in close proximity (≲3 nm) to each other, in which a single loaded electron exhibits a hyperfine interaction with several nuclei. Such spin registers provide a unique set of advantages: the shared electron naturally acts as an ancilla qubit enabling quantum non-demolition (QND) readout of the nuclear spins and native multi-qubit (Toffoli) gates^4,5. Combined with recent advances in silicon purification with sub-200 ppm of ²⁹Si (ref. ²²), these features enabled nuclear–nuclear CZ operations with fidelities exceeding 99% and the execution of three-qubit algorithms on a single multi-spin register⁵.

To enable the scaling of the 14|15 platform, it is essential to develop fast interconnects between quantum processing nodes without compromising performance²³. The coupling of spin qubits is achievable by various mechanisms, such as dipolar interaction²⁴ or spin–photon conversion in superconducting cavities²⁵. The fastest coupling mechanism is provided by exchange interaction, as demonstrated with a 0.8-ns \(\sqrt\rmSWAP\) gate between atomic qubits in natural silicon²⁶. Exchange gates on electron spins have also been implemented with gate-defined quantum dots in isotopically pure silicon with fidelities greater than 99% (refs. ^27,28,29,30). Successful implementation of exchange gates in atom qubits have already been achieved in purified silicon-28 (ref. ³¹), yet the limited two-qubit gate fidelity challenges the applicability of quantum-error-correction protocols^32,33.

Here we report a precision-placed 11-qubit atom processor in isotopically purified silicon-28 that runs on a fast and efficient exchange-based link. Compared with the previous atom-based implementations with nuclear spin qubits^4,5,22, we triple the number of coupled data qubits while maintaining the performance of single-qubit and two-qubit gates well above 99% fidelity. This achievement is enabled by systematic investigations of qubit stability, contextual errors and crosstalk, which informed the development of scalable calibration and control protocols. After outlining the basic set-up of the 11-qubit atom processor, we report the key metrics of single-qubit and two-qubit gates, assess pairwise entanglement for all combinations of nuclear spins and benchmark all-to-all connectivity through multi-qubit entanglement.

The connectivity of the nuclei and electrons both within each register and across registers is central to the operation of the 11-qubit atom processor (Fig. 1a). Each spin register contains nuclei (n₁–n₄ and n₅–n₉) that are hyperfine-coupled to a common electron (e₁ and e₂). Notably, these electrons are also exchange-coupled to each other, enabling non-local connectivity across the registers (Fig. 1b). The strength of electron exchange coupling J is tunable by the voltage detuning ε across in-plane control gates (Fig. 1c and Supplementary Information Section I). The Hamiltonian of the system is described in Supplementary Information Section II. Here we operate in a weak exchange-coupled regime with J ≈ 1.55 MHz (Fig. 1c). In this regime, the controlled rotations (CROT) on the electron are less susceptible to charge noise and not conditional on the nuclear spins in the other register^26,34,35,36. We note that the CROT operation on the electron spin has the advantage of implementing a native multi-qubit Toffoli gate that is conditional on the nuclear spins.

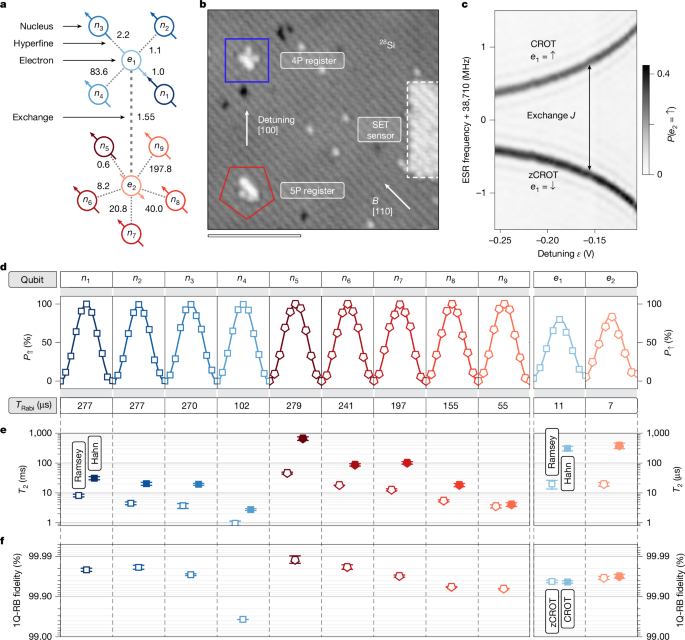

a, Connectivity of nuclear spins (n₁–n₉) and electron spins (e₁ and e₂) through hyperfine and exchange coupling with energies in MHz. b, Scanning tunnelling micrograph of the processor core after hydrogen lithography showing the 4P register hosting n₁–n₄ and e₁ (square) and the 5P register hosting n₅–n₉ and e₂ (pentagon). The distance 13(1) nm (centre to centre) between the nuclear spin registers is atomically engineered to enable exchange coupling^26,54. Scale bar, 10 nm. c, Exchange-coupled ESR spectrum of e₂ as a function of voltage detuning ε with indications on the resonance frequencies corresponding to CROT and zCROT. d, Rabi oscillations along one period T_Rabi for all spins of the processor. We measure the spin-up probability of the nucleus P_⇑ (electron P_↑) as a function of the coherent NMR (ESR) drive duration. e, Phase coherence times measured for each spin through Ramsey (open symbols) and Hahn-echo (filled symbols) measurements. f, 1Q-RB results for each qubit showing average physical gate fidelities. SET, single-electron transistor.

The initial calibration of the 11-qubit atom processor requires the characterization of 2⁴ + 2⁵ = 48 electron spin resonances (ESRs), which is doubled to 96 in the presence of electron exchange interaction. Analysing the stability of the ESR peaks (Supplementary Information Section III), we find that the frequencies within each register shift collectively. Accordingly, we can implement an efficient recalibration protocol that scales linearly with the number of coupled spin registers. By characterizing the ESR frequency for a single reference configuration of the nuclear spins, we infer the exact positions of all other ESR transitions of the register from the frequency offsets of the initial calibration. As a result, recalibrating all 96 ESR frequencies requires only two measurements, that is, one per register.

The state of the individual nuclear spins is controlled using nuclear magnetic resonance (NMR), similar to molecules in solution³⁷ and nitrogen-vacancy centres in diamond^38,39. The readout of an individual nuclear spin is performed through QND readout using the ancillary electron (Supplementary Information Section IV). For nuclear spin initialization, we combine this ESR-based approach with conditional NMR π pulses (Supplementary Information Section V). To maximize the fidelity of the initialized state, we perform QND readout of the nuclear spin configuration of each register before each experiment and apply post-selection on the desired nuclear spin configuration (Supplementary Information Section VI). For all experiments, unless stated otherwise, spectator qubits—that is, spins not actively involved in a given gate or quantum circuit—are initialized in the ⇓ state, and spin manipulations are performed conditional on these initialized states. The large contrast observed in Rabi oscillations (Fig. 1d) across all data qubits shows the performance of the nuclear-spin readout and initialization procedure.

The coherence times for both nuclear and electron spins are characterized by means of Ramsey and Hahn-echo measurements (Fig. 1e). For the nuclear spins, the phase coherence time extracted from Ramsey measurements, \(T_2^\star \), ranges from 1 to 46 ms. Refocusing with Hahn echo greatly extends such a phase coherence, \(T_2^\rmHahn\), to values between 3 and 660 ms. We observe that the phase coherence of the data qubits is related to its hyperfine Stark coefficient (Supplementary Information Section VII). Accordingly, we note that deterministic atom placement will provide a way to improve coherence by tailoring the spin registers for smaller susceptibility to electric field fluctuations. For the electrons e₁ and e₂, we measure similar phase coherence times of \(T_2^\star \approx 20\,\rm\mu \rms\) and \(T_2^\rmHahn\approx 350\,\rm\mu \rms\). Overall, our investigations affirm the potential of refocusing techniques to substantially improve the performance of our 11-qubit atom processor.

Single-qubit randomized benchmarking (1Q-RB) reveals that all qubits except n₄ operate with gate fidelities greater than 99.90% and as high as 99.99% for n₅ (see Supplementary Information Section VIII for optimization details). We attribute this excellent performance to long coherence times and minimal frequency drifts in both ESR and NMR (Supplementary Information Sections III and VII). These single-qubit metrics are on par with our recent results using a single spin register⁵, indicating consistency in atomic-scale fabrication.

To perform multi-qubit operations with any data qubit across our atom processor, we now establish a quantum link between the nuclear spin registers through the exchange interaction of the electrons. We first assess the performance of this link with interleaved two-qubit randomized benchmarking (2Q-RB) of the electron CROT gate (see Methods). To minimize off-resonant population transfer between the zero-controlled rotation (zCROT) and CROT resonances, the Rabi frequency is optimized to f_Rabi ≈ 400 kHz for the chosen exchange coupling J ≈ 1.55 MHz (ref. ⁴⁰) (Supplementary Information Section VIII.C). This choice sets the duration of the CROT π rotation to approximately 1.25 μs. Also, we calibrate the phase offsets of the CROT gates and implement a compensation protocol³⁰ (Supplementary Information Section VIII.C). Figure 2a shows the reference and interleaved 2Q-RB data for e₂ when all nuclear spins are initialized to down (⇓⇓⇓⇓, ⇓⇓⇓⇓⇓), which we denote for simplicity as (⇓⁴, ⇓⁵). The extracted electron–electron CROT gate fidelity of 99.64(8)% indicates excellent performance that is relevant for the application of quantum-error-correction protocols.

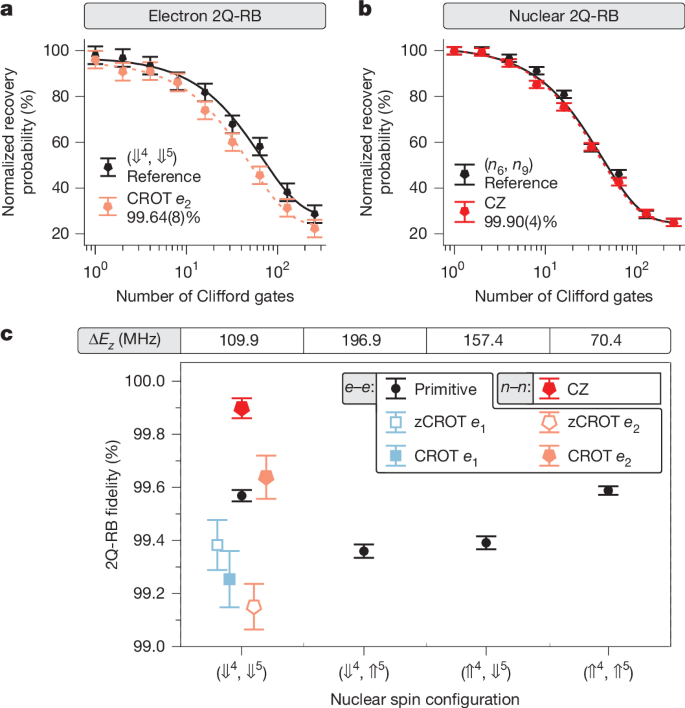

a, Normalized 2Q-RB of the electron–electron CROT gate from the reference (black) and interleaved procedure (CROT e₂) showing the Clifford fidelity. b, Normalized 2Q-RB of the geometric CZ operation on the nuclear-spin pair n₆ and n₉ from the reference (black) and interleaved procedure (CZ). All other nuclear spins are initialized to down ⇓ in this experiment. c, Summary of the nuclear (CZ) and electron 2Q-RB (zCROT and CROT of e₁ and e₂) fidelities. For the electron CROT gate, the primitive fidelities (reference for interleaved 2Q-RB) are also shown for different nuclear spin configurations, with the corresponding frequency gap ΔE_z = |f_CROT e1 − f_CROT e2| indicated at the top.

According to ref. ³⁵, the fidelity of the two-qubit CROT gate depends on the Larmor-frequency splitting ΔE_z = |f_CROT e1 − f_CROT e2|, which is defined by the nuclear-spin configuration. In particular, when ΔE_z is similar to the exchange interaction strength J, the fidelity is lower owing to hybridization with the singlet–triplet eigenbasis. By choosing small exchange of J = 1.55 MHz, we operate at a large ΔE_z/J ratio and obtain CROT gate fidelities exceeding 99% across different nuclear-spin configurations, as shown in Fig. 2c.

A key task of the ancilla electron in our 14|15 platform is to entangle nuclear data qubits by means of a geometric CZ gate that is implemented through a 2π-ESR rotation^4,5,41 (for a detailed derivation, see Supplementary Information Section II). Figure 2b shows interleaved 2Q-RB results for the nuclear CZ gate applied on two nuclear spins n₆ and n₉ on the 5P register, giving a nuclear two-qubit-gate fidelity of 99.90(4)%. The nuclear CZ gate strongly outperforms the CROT gate and thus allows local multi-qubit operation on a spin register with high fidelity.

Before applying this electron-exchange-based link to entangle nuclear spins across the two registers, we first benchmark the generation of local Bell states within a single spin register. As an example, we entangle the nuclear spins n₆ and n₉ of the 5P register through the electron e₂ (see schematic in Fig. 3a). An exemplary quantum circuit to prepare the Bell state is shown in Fig. 3b, which uses this nuclear CZ gate to entangle the nuclear-spin pair. Accordingly, the four maximally entangled Bell states, \(| \Phi ^\pm \rangle =(| \Downarrow \Downarrow \rangle \pm | \Uparrow \Uparrow \rangle )/\sqrt2\) and \(| \Psi ^\pm \rangle =(| \Downarrow \Uparrow \rangle \pm | \Uparrow \Downarrow \rangle )/\sqrt2\) can be generated by adjusting the phase of the initial −Y/2 NMR pulses, by inverting their respective signs. We remind that the gate operations used are conditional on the spectator data qubits in the system, which are initialized to ⇓. We perform quantum state tomography (QST) using a complete set of nine projections (all combinations of X, Y and Z for the two data qubits) and reconstruct the corresponding density matrix (Methods and Fig. 3c). Here the experiments are performed with J ≈ 1.69 MHz, which sets the optimal Rabi frequency for CROT operations to 436 kHz. Without removal of state preparation and measurement (SPAM) errors, we obtain an average state fidelity of 99.2(3)% for all Bell states (see table in Fig. 3c). To characterize the local Φ⁺ state across all nuclear-spin pairs from the two registers, we reconstruct the density matrix from a reduced set of three projections (XX, YY and ZZ). This way, we can increase the measurement speed with similar accuracy⁴² (Supplementary Information Section IX). For nuclear spins with smaller hyperfine coupling than J, we reduce f_Rabi for CROT gates to minimize off-resonance driving (Supplementary Information Section VIII.C). Figure 3d shows the local Φ⁺ state fidelities for all local combinations of data qubits on the respective registers ranging from 91.4(5)% to 99.5(1)%. To the best of our knowledge, the peak Bell-state fidelity surpassing 99% represents the highest value reported in semiconductor devices so far.

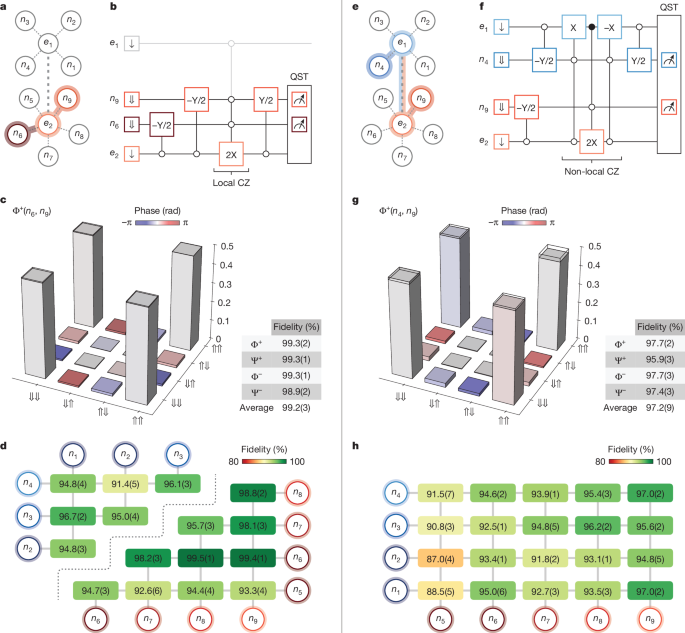

a (e), Connectivity of a local (non-local) Bell state. b (f), Circuit for generation and measurement of a Φ⁺ Bell state using local (non-local) CZ gate and QST. Open (filled) circles indicate whether the operation is conditional on the down (up) state. c (g), Reconstructed density matrix for a local (non-local) Φ⁺ Bell state. The table shows the fidelities for all local (non-local) Bell states. Here a complete set of nine projections is used to reconstruct the density matrix. d (h), Generation fidelities of local (non-local) Φ⁺ Bell state for all combinations of nuclear spins. As we use a reduced set of three projections, small deviations in the generation fidelities occur.

The variation in Bell-state fidelities observed arises from the interplay between several effects, including the Stark coefficient, the operational speed, the stability of the qubit frequencies, microwave-induced frequency shifts and the coherence time of the qubits involved (compare Supplementary Information Sections III, VII and VIII). For instance, Bell states involving n₅ exhibit lower fidelities (see the corresponding row in Fig. 3d). This reduction is primarily caused by its small hyperfine coupling, which sets the CROT gate speed approximately three times slower than for the other nuclear spins (n₆–n₉) in the same register (Supplementary Information Section VIII.D).

As a next step, we now interconnect the spin registers and implement non-local Bell states over the electron-exchange-based link. To demonstrate the approach, we entangle nuclear spins n₄ and n₉ through both electrons e₁ and e₂ (see connectivity in Fig. 3e). To implement the non-local CZ gate in the regime in which J ≪ ΔE_z, we project the targeted nuclear state on the electron e₁ through X gates (π rotation), sandwiching the 2X operation on e₂ (see circuit in Fig. 3f for the example of the Φ⁺ state). Again, we perform QST using a complete set of nine projections to maximize measurement accuracy. Figure 3g shows the density matrix of the non-local Bell state Φ⁺ with a table listing the extracted fidelities for Φ⁺, Φ⁻, Ψ⁺ and Ψ⁻, with an average of 97.2(9)%.

We characterize the non-local Φ⁺ state for all combinations of nuclear-spin pairs across the registers. Figure 3h shows the obtained state fidelities ranging from 87.0(4)% to 97.0(2)%. The observed reduction in fidelity compared with local Bell states is primarily attributed to the increased operation time of the non-local CZ gate. In particular, entanglement involving nuclear spins with smaller hyperfine coupling (n₁, n₂ or n₅) exhibits slightly lower performance, underscoring the importance of engineering hyperfine couplings larger than the exchange strength J in future devices. These results demonstrate the ability to generate pairwise entanglement between arbitrary nuclear-spin pairs, highlighting the potential of the 14|15 platform to realize efficient all-to-all connectivity.

A straightforward approach to benchmarking the all-to-all connectivity of a quantum processor is the generation of GHZ states with an increasing number of qubits. Accordingly, we investigate in the following non-local multi-qubit entanglement with an increasing number of nuclear spins. First, we generate a GHZ state with three nuclear spins: n₄ on the 4P register and n₆ and n₉ on the 5P register (Fig. 4a). We implement a combination of local and non-local Bell states and concatenate the corresponding entanglement circuits as shown in Fig. 4b. The density matrix shown in Fig. 4c is reconstructed from a full set of QST measurements. Without SPAM removal, we report a GHZ state fidelity of 90.8(3)%.

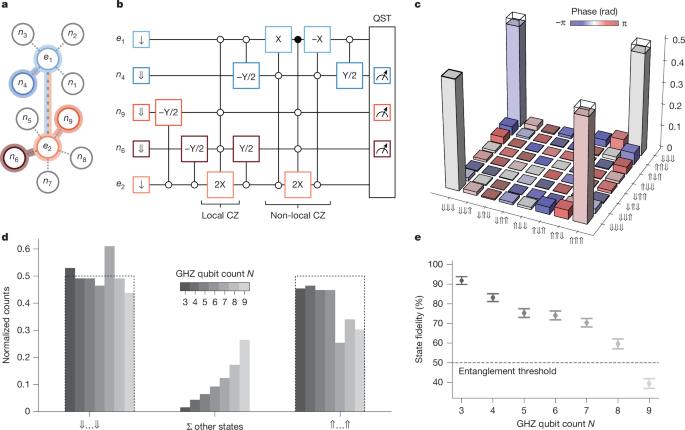

a, Connectivity of the three-qubit GHZ state comprising n₄, n₆ and n₉. b, Circuit for the generation and measurement of the three-qubit GHZ state using the local and non-local CZ gate and QST through the ancilla qubits e₁ and e₂. Open (filled) circles indicate whether the operation is conditional on the down (up) state. c, Reconstructed density matrix for the GHZ state with N = 3 entangled nuclear spins. d, Normalized QST counts in the z projection—that is, diagonal of density matrix—for GHZ states with increasing qubit count N. The bars on the left (right) show matrix elements in which all nuclear spins are down ⇓…⇓ (up ⇑…⇑). All other elements with mixed states (with ⇓ and ⇑) are combined via their sum in the bars in the middle. e, Generation fidelity as a function of the number of qubits N in the GHZ state.

To prepare a GHZ state with more than three qubits, we now extend the circuit shown in Fig. 4b by adding the local entanglement sequence—NMR  −Y/2, local ESR 2X and NMR Y/2—for each extra qubit. For the 5P (4P) register, we add these local entanglement operations before (after) the non-local CZ. Because the number of tomography bases grows exponentially (3^N, in which N is the number of qubits), we use a reduced measurement strategy that requires only N + 1 bases to estimate the state fidelity^42,43. Figure 4d shows the counts in the z basis of GHZ states with an increasing number of entangled nuclear spins. In the ideal GHZ state, measurement outcomes are equally distributed between the states in which all nuclear spins are either down (⇓…⇓) or up (⇑…⇑). Increasing the number of qubits in the GHZ state (N), we observe a gradual increase in the probability of all other states, that is, mixed combinations of ⇓ and ⇑. The corresponding GHZ fidelities are plotted in Fig. 4e. The three-qubit GHZ fidelity is 92(2)%, consistent with the value of 90.8(3)% obtained from full QST. Because a fidelity greater 50% is sufficient to witness genuine N-qubit entanglement⁴⁴, the data demonstrate that entanglement is maintained for up to eight nuclear spins. Further performance improvements are anticipated by coherent control optimization⁴⁵, frequency crosstalk mitigation and the incorporation of refocusing pulses. Building on this progress, the present results demonstrate efficient connectivity across nuclear data qubits in our atom processor, representing an important step towards future implementations of quantum error correction on the 14|15 platform.
